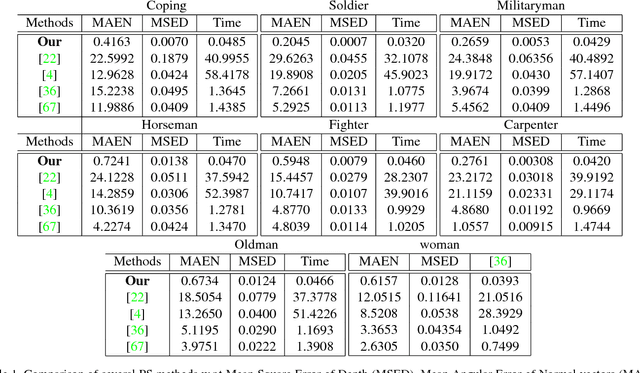

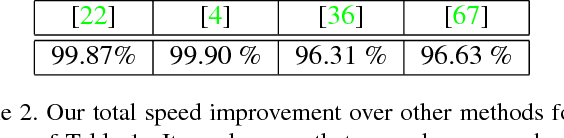

Real-Time 3D Shape of Micro-Details

Motivated by the growing demand for interactive environments, we propose an accurate real-time 3D shape reconstruction technique. To provide a reliable 3D reconstruction which is still a challenging task when dealing with real-world applications, we integrate several components including (i) Photometric Stereo (PS), (ii) perspective Cook-Torrance reflectance model that enables PS to deal with a broad range of possible real-world object reflections, (iii) realistic lightening situation, (iv) a Recurrent Optimization Network (RON) and finally (v) heuristic Dijkstra Gaussian Mean Curvature (DGMC) initialization approach. We demonstrate the potential benefits of our hybrid model by providing 3D shape with highly-detailed information from micro-prints for the first time. All real-world images are taken by a mobile phone camera under a simple setup as a consumer-level equipment. In addition, complementary synthetic experiments confirm the beneficial properties of our novel method and its superiority over the state-of-the-art approaches.

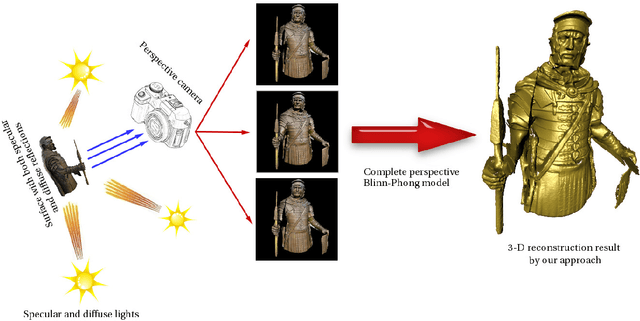

Photometric stereo for strong specular highlights

Photometric stereo (PS) is a fundamental technique in computer vision known to produce 3-D shape with high accuracy. The setting of PS is defined by using several input images of a static scene taken from one and the same camera position but under varying illumination. The vast majority of studies in this 3-D reconstruction method assume orthographic projection for the camera model. In addition, they mainly consider the Lambertian reflectance model as the way that light scatters at surfaces. So, providing reliable PS results from real world objects still remains a challenging task. We address 3-D reconstruction by PS using a more realistic set of assumptions combining for the first time the complete Blinn-Phong reflectance model and perspective projection. To this end, we will compare two different methods of incorporating the perspective projection into our model. Experiments are performed on both synthetic and real world images. Note that our real-world experiments do not benefit from laboratory conditions. The results show the high potential of our method even for complex real world applications such as medical endoscopy images which may include high amounts of specular highlights.

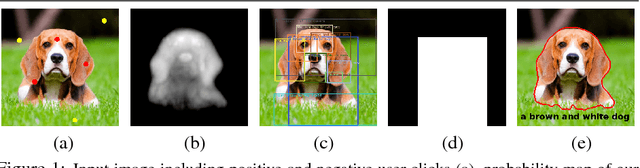

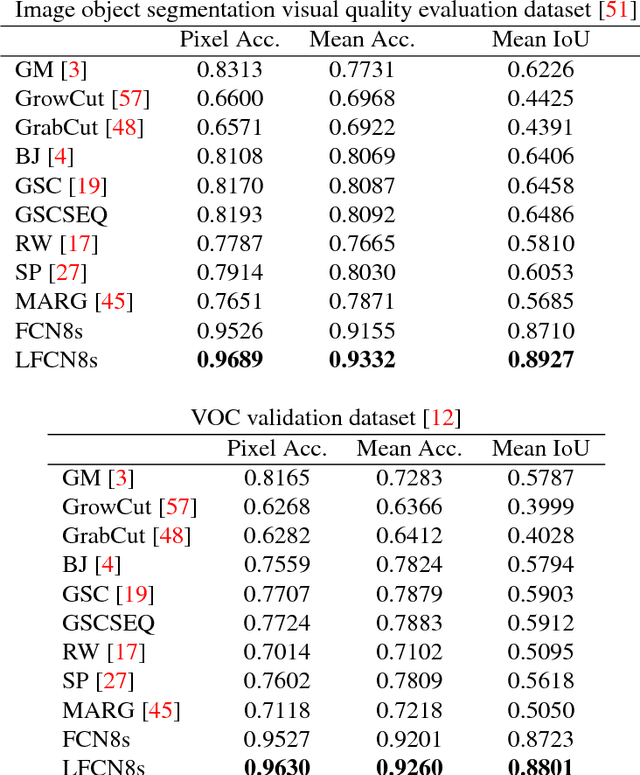

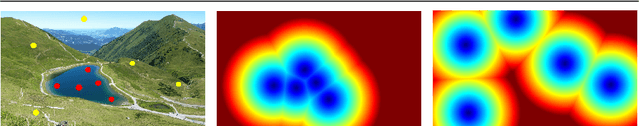

Deep Interactive Region Segmentation and Captioning

With recent innovations in dense image captioning, it is now possible to describe every object of the scene with a caption while objects are determined by bounding boxes. However, interpretation of such an output is not trivial due to the existence of many overlapping bounding boxes. Furthermore, in current captioning frameworks, the user is not able to involve personal preferences to exclude out of interest areas. In this paper, we propose a novel hybrid deep learning architecture for interactive region segmentation and captioning where the user is able to specify an arbitrary region of the image that should be processed. To this end, a dedicated Fully Convolutional Network (FCN) named Lyncean FCN (LFCN) is trained using our special training data to isolate the User Intention Region (UIR) as the output of an efficient segmentation. In parallel, a dense image captioning model is utilized to provide a wide variety of captions for that region. Then, the UIR will be explained with the caption of the best match bounding box. To the best of our knowledge, this is the first work that provides such a comprehensive output. Our experiments show the superiority of the proposed approach over state-of-the-art interactive segmentation methods on several well-known datasets. In addition, replacement of the bounding boxes with the result of the interactive segmentation leads to a better understanding of the dense image captioning output as well as accuracy enhancement for the object detection in terms of Intersection over Union (IoU).
