Towards Targeted Change Detection with Heterogeneous Remote Sensing Images for Forest Mortality Mapping

In this paper we develop a method for mapping forest mortality in the forest-tundra ecotone using satellite data from heterogeneous sensors. We use medium resolution imagery in order to provide the complex pattern of forest mortality in this sparsely forested area, which has been induced by an outbreak of geometrid moths. Specifically, Landsat-5 Thematic Mapper images from before the event are used, with RADARSAT-2 providing the post-event images. We obtain the difference images for both multispectral optical and synthetic aperture radar (SAR) by using a recently developed deep learning method for translating between the two domains. These differences are stacked with the original pre- and post-event images in order to let our algorithm also learn how the areas appear before and after the change event. By doing this, and focusing on learning only the changes of interest with one-class classification (OCC), we obtain good results with very little training data.

Code-Aligned Autoencoders for Unsupervised Change Detection in Multimodal Remote Sensing Images

Image translation with convolutional autoencoders has recently been used as an approach to multimodal change detection in bitemporal satellite images. A main challenge is the alignment of the code spaces by reducing the contribution of change pixels to the learning of the translation function. Many existing approaches train the networks by exploiting supervised information of the change areas, which, however, is not always available. We propose to extract relational pixel information captured by domain-specific affinity matrices at the input and use this to enforce alignment of the code spaces and reduce the impact of change pixels on the learning objective. A change prior is derived in an unsupervised fashion from pixel pair affinities that are comparable across domains. To achieve code space alignment we enforce that pixel with similar affinity relations in the input domains should be correlated also in code space. We demonstrate the utility of this procedure in combination with cycle consistency. The proposed approach are compared with state-of-the-art deep learning algorithms. Experiments conducted on four real datasets show the effectiveness of our methodology.

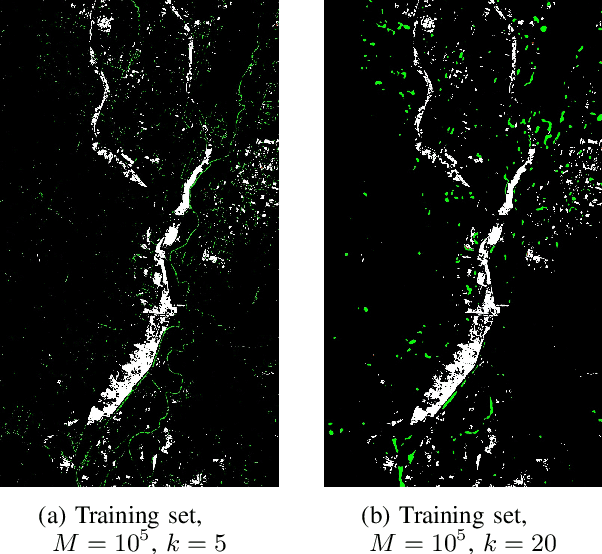

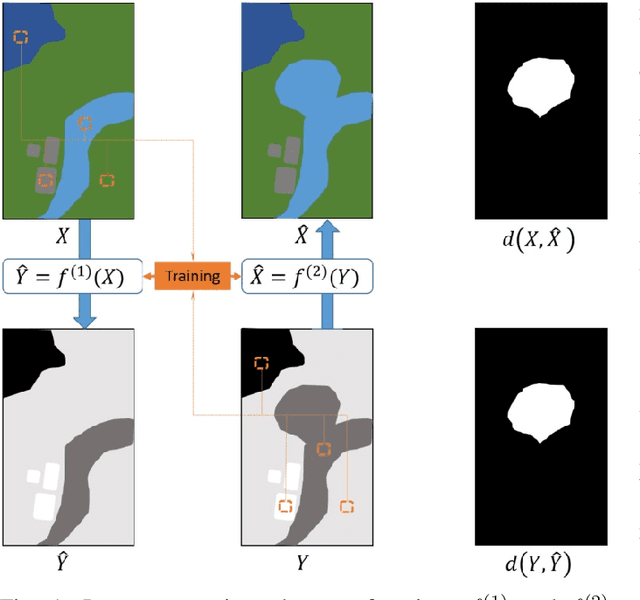

Unsupervised Image Regression for Heterogeneous Change Detection

Change detection in heterogeneous multitemporal satellite images is an emerging and challenging topic in remote sensing. In particular, one of the main challenges is to tackle the problem in an unsupervised manner. In this paper we propose an unsupervised framework for bitemporal heterogeneous change detection based on the comparison of affinity matrices and image regression. First, our method quantifies the similarity of affinity matrices computed from co-located image patches in the two images. This is done to automatically identify pixels that are likely to be unchanged. With the identified pixels as pseudo-training data, we learn a transformation to map the first image to the domain of the other image, and vice versa. Four regression methods are selected to carry out the transformation: Gaussian process regression, support vector regression, random forest regression, and a recently proposed kernel regression method called homogeneous pixel transformation. To evaluate the potentials and limitations of our framework, and also the benefits and disadvantages of each regression method, we perform experiments on two real data sets. The results indicate that the comparison of the affinity matrices can already be considered a change detection method by itself. However, image regression is shown to improve the results obtained by the previous step alone and produces accurate change detection maps despite of the heterogeneity of the multitemporal input data. Notably, the random forest regression approach excels by achieving similar accuracy as the other methods, but with a significantly lower computational cost and with fast and robust tuning of hyperparameters.

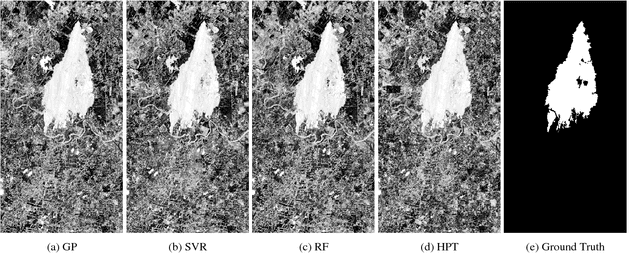

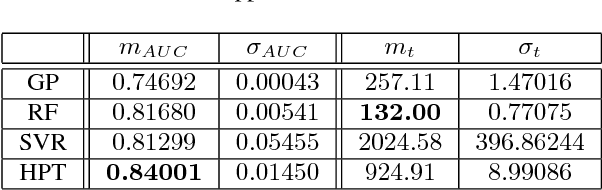

Remote sensing image regression for heterogeneous change detection

Change detection in heterogeneous multitemporal satellite images is an emerging topic in remote sensing. In this paper we propose a framework, based on image regression, to perform change detection in heterogeneous multitemporal satellite images, which has become a main topic in remote sensing. Our method learns a transformation to map the first image to the domain of the other image, and vice versa. Four regression methods are selected to carry out the transformation: Gaussian processes, support vector machines, random forests, and a recently proposed kernel regression method called homogeneous pixel transformation. To evaluate not only potentials and limitations of our framework, but also the pros and cons of each regression method, we perform experiments on two data sets. The results indicates that random forests achieve good performance, are fast and robust to hyperparameters, whereas the homogeneous pixel transformation method can achieve better accuracy at the cost of a higher complexity.
