Gait Event Detection in Tibial Acceleration Profiles: a Structured Learning Approach

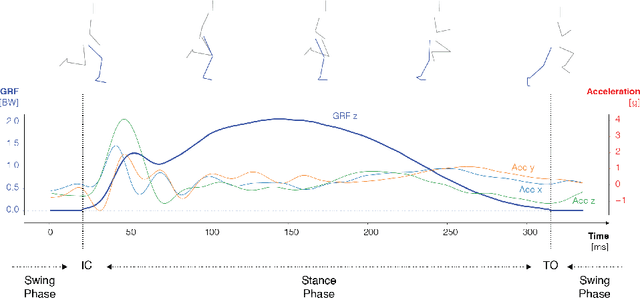

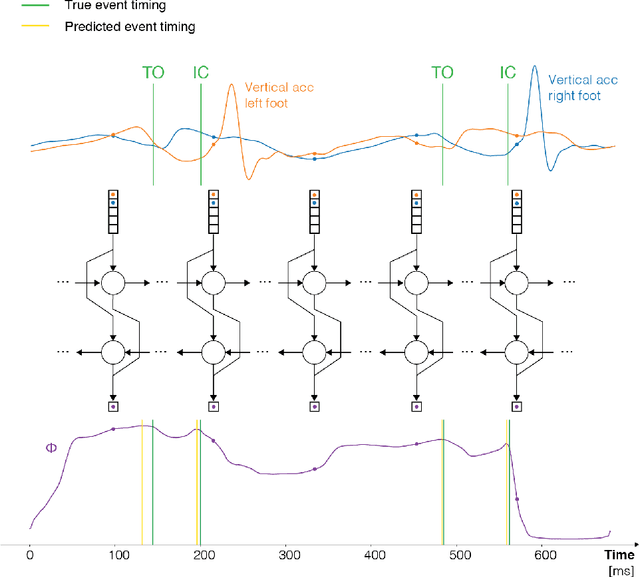

Analysis of runner's data will often examine gait variables with reference to one or more gait events. Two such representative events are the initial contact and toe off events. These correspond respectively to the moments in time when the foot makes the initial contact with the ground and when the foot leaves the ground again. These variables are traditionally measured with a force plate or motion capture system in a lab setting. However, thanks to recent evolutions in wearable technology, the use of accelerometers has become commonplace for prolonged outdoor measurements. Previous research has developed heuristic methods to identify the initial contact and toe off timings based on minima, maxima and thresholds in the acceleration profiles. A significant flaw of these heuristic-based methods is that they are tailored to very specific acceleration profiles, providing no guidelines on how to handle deviant profiles. Therefore, we frame the problem as a structured prediction task and propose a machine learning approach for determining initial foot contact and toe off events from 3D tibial acceleration profiles. With mean absolute errors of 2 ms and 4 ms for respectively the initial contact and toe-off events, our method significantly outperforms the existing heuristic approaches.
