Statistical Regression to Predict Total Cumulative CPU Usage of MapReduce Jobs

Recently, businesses have started using MapReduce as a popular computation framework for processing large amount of data, such as spam detection, and different data mining tasks, in both public and private clouds. Two of the challenging questions in such environments are (1) choosing suitable values for MapReduce configuration parameters e.g., number of mappers, number of reducers, and DFS block size, and (2) predicting the amount of resources that a user should lease from the service provider. Currently, the tasks of both choosing configuration parameters and estimating required resources are solely the users responsibilities. In this paper, we present an approach to provision the total CPU usage in clock cycles of jobs in MapReduce environment. For a MapReduce job, a profile of total CPU usage in clock cycles is built from the job past executions with different values of two configuration parameters e.g., number of mappers, and number of reducers. Then, a polynomial regression is used to model the relation between these configuration parameters and total CPU usage in clock cycles of the job. We also briefly study the influence of input data scaling on measured total CPU usage in clock cycles. This derived model along with the scaling result can then be used to provision the total CPU usage in clock cycles of the same jobs with different input data size. We validate the accuracy of our models using three realistic applications (WordCount, Exim MainLog parsing, and TeraSort). Results show that the predicted total CPU usage in clock cycles of generated resource provisioning options are less than 8% of the measured total CPU usage in clock cycles in our 20-node virtual Hadoop cluster.

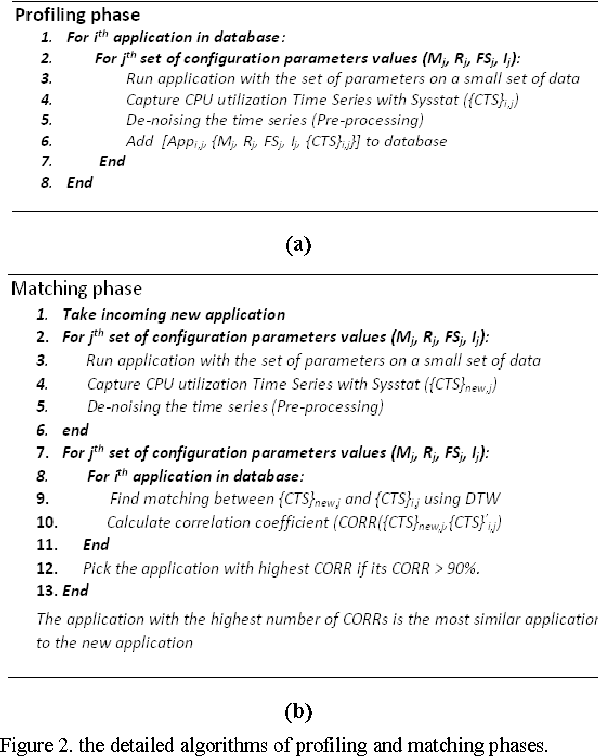

Pattern Matching for Self- Tuning of MapReduce Jobs

In this paper, we study CPU utilization time patterns of several MapReduce applications. After extracting running patterns of several applications, they are saved in a reference database to be later used to tweak system parameters to efficiently execute unknown applications in future. To achieve this goal, CPU utilization patterns of new applications are compared with the already known ones in the reference database to find/predict their most probable execution patterns. Because of different patterns lengths, the Dynamic Time Warping (DTW) is utilized for such comparison; a correlation analysis is then applied to DTWs outcomes to produce feasible similarity patterns. Three real applications (WordCount, Exim Mainlog parsing and Terasort) are used to evaluate our hypothesis in tweaking system parameters in executing similar applications. Results were very promising and showed effectiveness of our approach on pseudo-distributed MapReduce platforms.

A Study on Using Uncertain Time Series Matching Algorithms in MapReduce Applications

In this paper, we study CPU utilization time patterns of several Map-Reduce applications. After extracting running patterns of several applications, the patterns with their statistical information are saved in a reference database to be later used to tweak system parameters to efficiently execute unknown applications in future. To achieve this goal, CPU utilization patterns of new applications along with its statistical information are compared with the already known ones in the reference database to find/predict their most probable execution patterns. Because of different patterns lengths, the Dynamic Time Warping (DTW) is utilized for such comparison; a statistical analysis is then applied to DTWs' outcomes to select the most suitable candidates. Moreover, under a hypothesis, another algorithm is proposed to classify applications under similar CPU utilization patterns. Three widely used text processing applications (WordCount, Distributed Grep, and Terasort) and another application (Exim Mainlog parsing) are used to evaluate our hypothesis in tweaking system parameters in executing similar applications. Results were very promising and showed effectiveness of our approach on 5-node Map-Reduce platform
