Detection of Transformer Winding Axial Displacement by Kirchhoff and Delay and sum Radar Imaging Algorithms

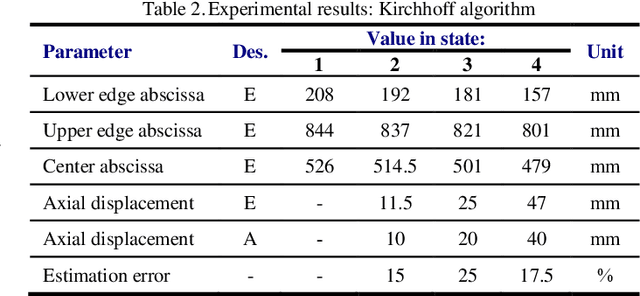

In this paper, a novel method for in detail detection of the winding axial displacement in power transformers based on UWB imaging is presented. In this method, the radar imaging process is implemented on the power transformer by using an ultra-wide band (UWB) transceiver. The result is a 2-D image of the transformer winding, which is analyzed to determine the occurrence as well as the magnitude of the winding axial displacement. The method is implemented on a transformer model. The experimental results illustrate the effectiveness of the proposed method.
