Test Case Features as Hyper-heuristics for Inductive Programming

Instruction subsets are heuristics that can reduce the size of the inductive programming search space by tens of orders of magnitude. Comprising many overlapping subsets of different sizes, they serve as predictions of the instructions required to code a solution for any problem. Currently, this approach employs a single, large family of subsets meaning that some problems can search thousands of subsets before a solution is found. In this paper we introduce the use of test case type signatures as hyper-heuristics to select one of many, smaller families of instruction subsets. The type signature for any set of test cases maps directly to a single family and smaller families mean that fewer subsets need to be considered for most problems. Having many families also permits subsets to be reordered to better reflect their relative occurrence in human code - again reducing the search space size for many problems. Overall the new approach can further reduce the size of the inductive programming search space by between 1 and 3 orders of magnitude, depending on the type signature. Larger and more consistent reductions are possible through the use of more sophisticated type systems. The potential use of additional test case features as hyper-heuristics and some other possible future work is also briefly discussed.

Further Decimating the Inductive Programming Search Space with Instruction Digrams

Overlapping instruction subsets derived from human originated code have previously been shown to dramatically shrink the inductive programming search space, often by many orders of magnitude. Here we extend the instruction subset approach to consider direct instruction-instruction applications (or instruction digrams) as an additional search heuristic for inductive programming. In this study we analyse the frequency distribution of instruction digrams in a large sample of open source code. This indicates that the instruction digram distribution is highly skewed with over 93% of possible instruction digrams not represnted in the code sample. We demonstrate that instruction digrams can be used to constrain instruction selection during search, further reducing size of the the search space, in some cases by several orders of magnitude. This significantly increases the size of programs that can be generated using search based inductive programming techniques. We discuss the results and provide some suggestions for further work.

Shrinking the Inductive Programming Search Space with Instruction Subsets

Inductive programming frequently relies on some form of search in order to identify candidate solutions. However, the size of the search space limits the use of inductive programming to the production of relatively small programs. If we could somehow correctly predict the subset of instructions required for a given problem then inductive programming would be more tractable. We will show that this can be achieved in a high percentage of cases. This paper presents a novel model of programming language instruction co-occurrence that was built to support search space partitioning in the Zoea distributed inductive programming system. This consists of a collection of intersecting instruction subsets derived from a large sample of open source code. Using the approach different parts of the search space can be explored in parallel. The number of subsets required does not grow linearly with the quantity of code used to produce them and a manageable number of subsets is sufficient to cover a high percentage of unseen code. This approach also significantly reduces the overall size of the search space - often by many orders of magnitude.

Architecture and Knowledge Representation for Composable Inductive Programming

We present an update on the current architecture of the Zoea knowledge-based, Composable Inductive Programming system. The Zoea compiler is built using a modern variant of the black-board architecture. Zoea integrates a large number of knowledge sources that encode different aspects of programming language and software development expertise. We describe the use of synthetic test cases as a ubiquitous form of knowledge and hypothesis representation that sup-ports a variety of reasoning strategies. Some future plans are also outlined.

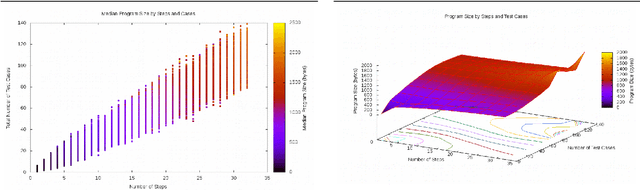

The Composability of Intermediate Values in Composable Inductive Programming

It is believed that mechanisms including intermediate values enable composable inductive programming (CIP) to be used to produce software of any size. We present the results of a study that investigated the relationships between program size, the number of intermediate values and the number of test cases used to specify programs using CIP. In the study 96,000 programs of various sizes were randomly generated, decomposed into fragments and transformed into test cases. The test cases were then used to regenerate new versions of the original programs using Zoea. The results show linear relationships between the number of intermediate values and regenerated program size, and between the number of test cases and regenerated program size within the size range studied. In addition, as program size increases there is increasing scope for trading off the number of test cases against the number of intermediate values and vice versa.

A Visual Language for Composable Inductive Programming

We present Zoea Visual which is a visual programming language based on the Zoea composable inductive programming language. Zoea Visual allows users to create software directly from a specification that resembles a set of functional test cases. Programming with Zoea Visual involves the definition of a data flow model of test case inputs, optional intermediate values, and outputs. Data elements are represented visually and can be combined to create structures of any complexity. Data flows between elements provide additional information that allows the Zoea compiler to generate larger programs in less time. This paper includes an overview of the language. The benefits of the approach and some possible future enhancements are also discussed.

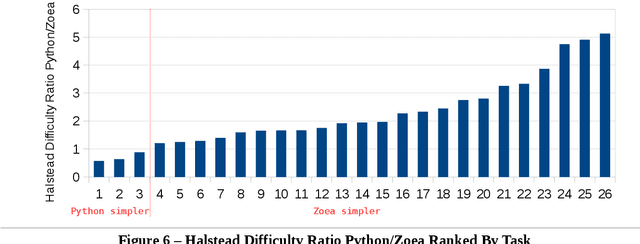

Quantifying the Impact on Software Complexity of Composable Inductive Programming using Zoea

Composable inductive programming as implemented in the Zoea programming language is a simple declarative approach to software development. At the language level it is evident that Zoea is significantly simpler than all mainstream languages. However, until now we have only had anecdotal evidence that software produced with Zoea is also simpler than equivalent software produced with conventional languages. This paper presents the results of a quantitative comparison of the software complexity of equivalent code implemented in Zoea and also in a conventional programming language. The study uses a varied set of programming tasks from a popular programming language chrestomathy. Results are presented for relative program complexity using two established metrics and also for relative program size. It was found that Zoea programs are approximately 50% the complexity of equivalent programs in a conventional language and on average equal in size. The results suggest that current programming languages (as opposed to software requirements) are the largest contributor to software complexity and that significant complexity could be avoided through an inductive programming approach.

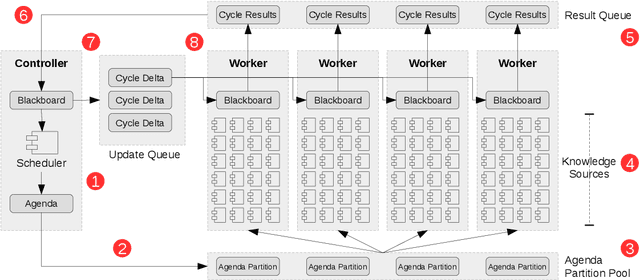

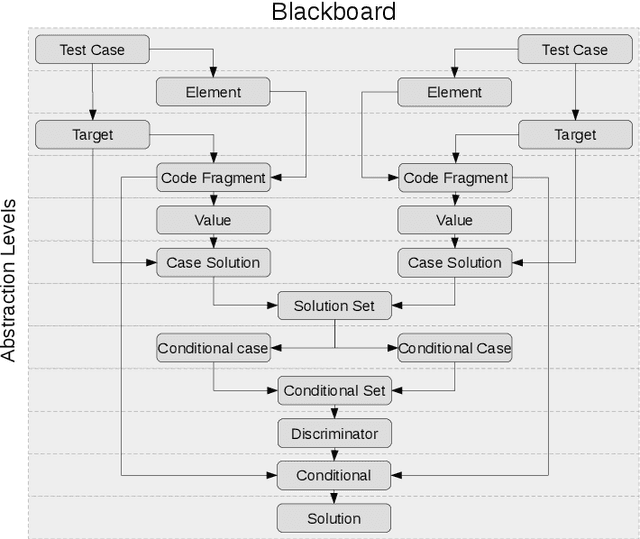

Zoea -- Composable Inductive Programming Without Limits

Automatic generation of software from some form of specification has been a long standing goal of computer science research. To date successful results have been reported for the production of relatively small programs. This paper presents Zoea which is a simple programming language that allows software to be generated from a specification format that closely resembles a set of automated functional tests. Zoea incorporates a number of advances that enable it to generate software that is large enough to have commercial value. Zoea also allows programs to be composed to form still larger programs. As a result Zoea can be used to produce software of any size and complexity. An overview of the core Zoea language is provided together with a high level description of the symbolic AI based Zoea compiler.
