Organization of computation in reservoir computing

Reservoir computing exploits nonlinear dynamical systems to encode temporal inputs into high-dimensional state space representations. Although reservoir performance is often characterized through memory, nonlinearity, and their tradeoff, such aggregate measures do not reveal how task-relevant information is organized within the state space. Here, we introduce an eigen-spectral decomposition framework linking the degree-wise information processing capacity to the corresponding state space modes. As a result, we are able to quantify the degree-wise representation energy, and show that in some cases, substantial amounts of information processing capacity may reside in low-energy modes that are vulnerable to experimental noise. These results suggest that useful reservoir computation depends not only on dimensionality expansion, but also on the geometric organization of task-relevant information, with direct implications on physical reservoir computers.

Deep Binarized Photonic Reservoir Computing for Ultrafast Multimedia Signal Processing

We present a deep photonic neural network architecture based on ultrafast binary optical modulation from a digital micro-mirror device (DMD), optical scattering in random medium, high-speed photodetection with a CMOS sensor, and time-multiplexed deep layer structure. Operating at Gigabit-per-second (Gb/s) processing rates, our system based on the reservoir computing (RC) framework achieves state-of-the-art performance across various multimedia tasks, including video, image and speech recognition. We show that the careful optimization of key physical intra- and inter-layer hyper-parameters can significantly enhance the deep photonic RC system ability to extract relevant temporal and spatial features via balancing memory retention and dynamical response of individual layers. This approach paves the way for highly scalable hierarchical photonic reservoir computing systems for high-throughput real-time multimedia signal processing.

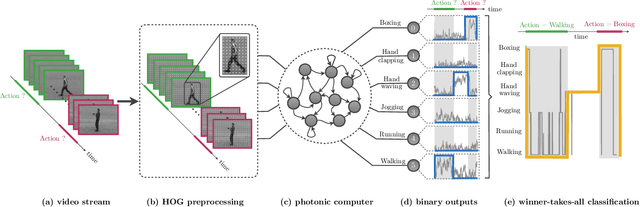

Human action recognition with a large-scale brain-inspired photonic computer

The recognition of human actions in video streams is a challenging task in computer vision, with cardinal applications in e.g. brain-computer interface and surveillance. Deep learning has shown remarkable results recently, but can be found hard to use in practice, as its training requires large datasets and special purpose, energy-consuming hardware. In this work, we propose a scalable photonic neuro-inspired architecture based on the reservoir computing paradigm, capable of recognising video-based human actions with state-of-the-art accuracy. Our experimental optical setup comprises off-the-shelf components, and implements a large parallel recurrent neural network that is easy to train and can be scaled up to hundreds of thousands of nodes. This work paves the way towards simply reconfigurable and energy-efficient photonic information processing systems for real-time video processing.

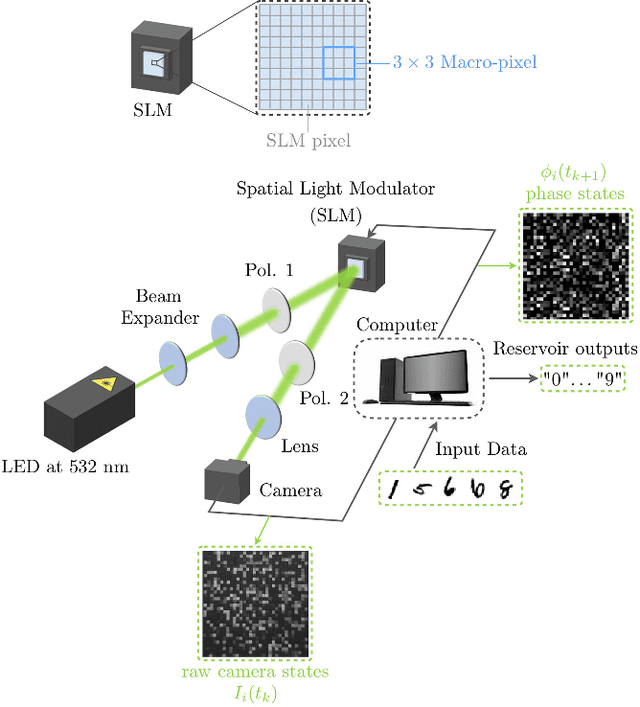

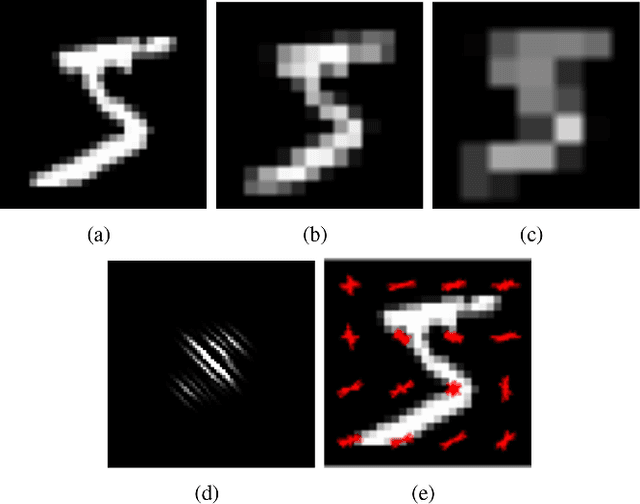

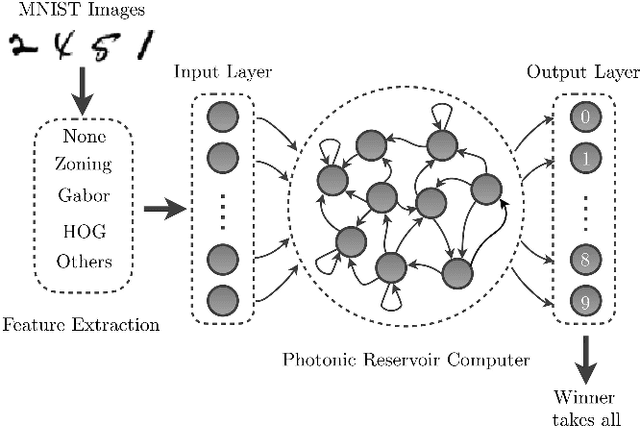

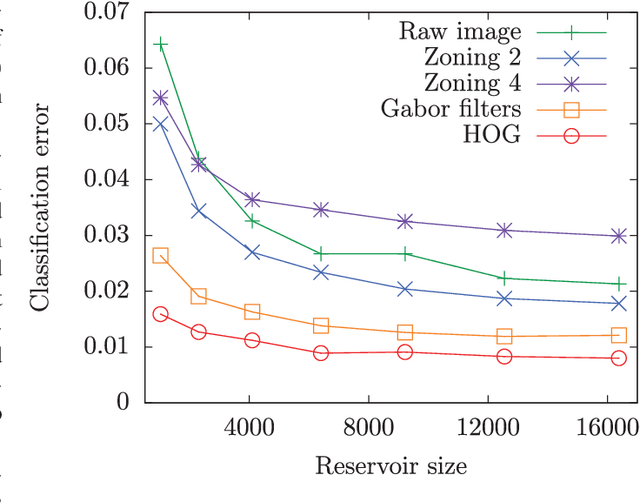

Large-scale spatiotemporal photonic reservoir computer for image classification

We propose a scalable photonic architecture for implementation of feedforward and recurrent neural networks to perform the classification of handwritten digits from the MNIST database. Our experiment exploits off-the-shelf optical and electronic components to currently achieve a network size of 16,384 nodes. Both network types are designed within the the reservoir computing paradigm with randomly weighted input and hidden layers. Using various feature extraction techniques (e.g. histograms of oriented gradients, zoning, Gabor filters) and a simple training procedure consisting of linear regression and winner-takes-all decision strategy, we demonstrate numerically and experimentally that a feedforward network allows for classification error rate of 1%, which is at the state-of-the-art for experimental implementations and remains competitive with more advanced algorithmic approaches. We also investigate recurrent networks in numerical simulations by explicitly activating the temporal dynamics, and predict a performance improvement over the feedforward configuration.

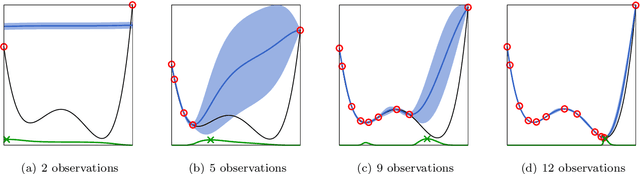

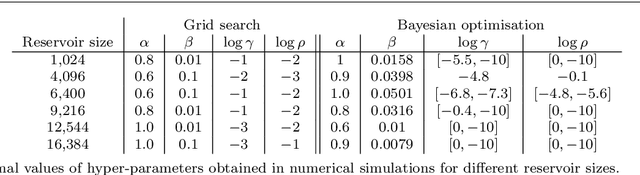

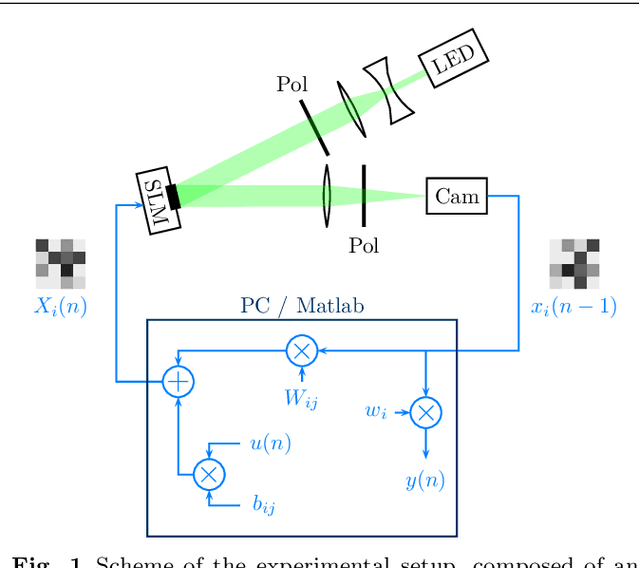

Bayesian optimisation of large-scale photonic reservoir computers

Introduction. Reservoir computing is a growing paradigm for simplified training of recurrent neural networks, with a high potential for hardware implementations. Numerous experiments in optics and electronics yield comparable performance to digital state-of-the-art algorithms. Many of the most recent works in the field focus on large-scale photonic systems, with tens of thousands of physical nodes and arbitrary interconnections. While this trend significantly expands the potential applications of photonic reservoir computing, it also complicates the optimisation of the high number of hyper-parameters of the system. Methods. In this work, we propose the use of Bayesian optimisation for efficient exploration of the hyper-parameter space in a minimum number of iteration. Results. We test this approach on a previously reported large-scale experimental system, compare it to the commonly used grid search, and report notable improvements in performance and the number of experimental iterations required to optimise the hyper-parameters. Conclusion. Bayesian optimisation thus has the potential to become the standard method for tuning the hyper-parameters in photonic reservoir computing.
