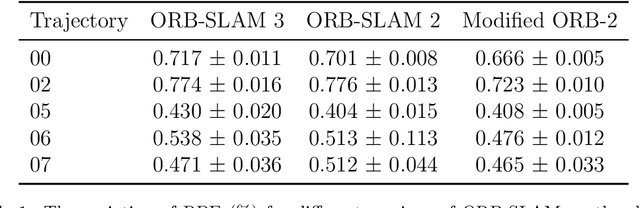

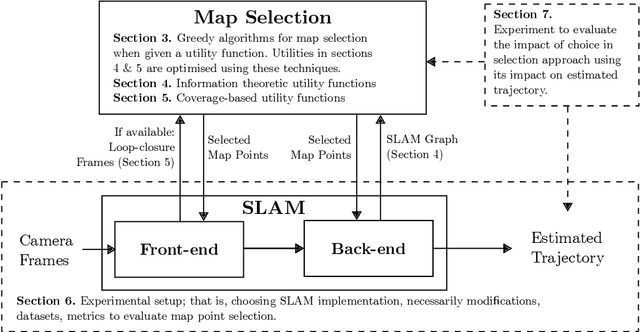

Map Point Selection for Visual SLAM

Simultaneous localisation and mapping (SLAM) play a vital role in autonomous robotics. Robotic platforms are often resource-constrained, and this limitation motivates resource-efficient SLAM implementations. While sparse visual SLAM algorithms offer good accuracy for modest hardware requirements, even these more scalable sparse approaches face limitations when applied to large-scale and long-term scenarios. A contributing factor is that the point clouds resulting from SLAM are inefficient to use and contain significant redundancy. This paper proposes the use of subset selection algorithms to reduce the map produced by sparse visual SLAM algorithms. Information-theoretic techniques have been applied to simpler related problems before, but they do not scale if applied to the full visual SLAM problem. This paper proposes a number of novel information\hyp{}theoretic utility functions for map point selection and optimises these functions using greedy algorithms. The reduced maps are evaluated using practical data alongside an existing visual SLAM implementation (ORB-SLAM 2). Approximate selection techniques proposed in this paper achieve trajectory accuracy comparable to an offline baseline while being suitable for online use. These techniques enable the practical reduction of maps for visual SLAM with competitive trajectory accuracy. Results also demonstrate that SLAM front-end performance can significantly impact the performance of map point selection. This shows the importance of testing map point selection with a front-end implementation. To exploit this, this paper proposes an approach that includes a model of the front-end in the utility function when additional information is available. This approach outperforms alternatives on applicable datasets and highlights future research directions.

An accurate and efficient approach to probabilistic conflict prediction

Conflict prediction is a vital component of path planning for autonomous vehicles. Prediction methods must be accurate for reliable navigation, but also computationally efficient to enable online path planning. Efficient prediction methods are especially crucial when testing large sets of candidate trajectories. We present a prediction method that has the same accuracy as existing methods, but up to an order of magnitude faster. This is achieved by rewriting the conflict prediction problem in terms of the first-passage time distribution using a dimension-reduction transform. First-passage time distributions are analytically derived for a subset of Gaussian processes describing vehicle motion. The proposed method is applicable to 2-D stochastic processes where the mean can be approximated by line segments, and the conflict boundary can be approximated by piece-wise straight lines. The proposed method was tested in simulation and compared to two probability flow methods, as well as a recent instantaneous conflict probability method. The results demonstrate a significant decrease of computation time.

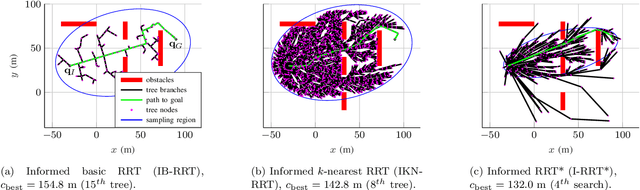

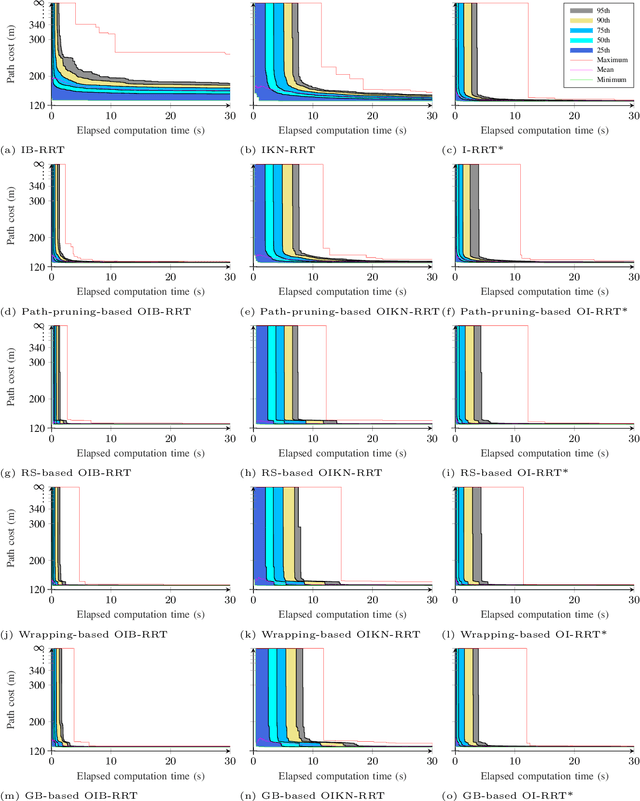

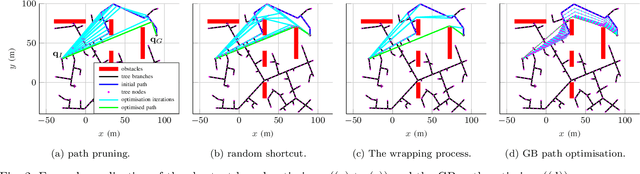

Optimised Informed RRTs for Mobile Robot Path Planning

Path planners based on basic rapidly-exploring random trees (RRTs) are quick and efficient, and thus favourable for real-time robot path planning, but are almost-surely suboptimal. In contrast, the optimal RRT (RRT*) converges to the optimal solution, but may be expensive in practice. Recent work has focused on accelerating the RRT*'s convergence rate. The most successful strategies are informed sampling, path optimisation, and a combination thereof. However, informed sampling and its combination with path optimisation have not been applied to the basic RRT. Moreover, while a number of path optimisers can be used to accelerate the convergence rate, a comparison of their effectiveness is lacking. This paper investigates the use of informed sampling and path optimisation to accelerate planners based on both the basic RRT and the RRT*, resulting in a family of algorithms known as optimised informed RRTs. We apply different path optimisers and compare their effectiveness. The goal is to ascertain if applying informed sampling and path optimisation can help the quick, though almost-surely suboptimal, path planners based on the basic RRT attain comparable or better performance than RRT*-based planners. Analyses show that RRT-based optimised informed RRTs do attain better performance than their RRT*-based counterparts, both when planning time is limited and when there is more planning time.

Stochastic Triangular Mesh Mapping

For mobile robots to operate autonomously in general environments, perception is required in the form of a dense metric map. For this purpose, we present the stochastic triangular mesh (STM) mapping technique: a 2.5-D representation of the surface of the environment using a continuous mesh of triangular surface elements, where each surface element models the mean plane and roughness of the underlying surface. In contrast to existing mapping techniques, a STM map models the structure of the environment by ensuring a continuous model, while also being able to be incrementally updated with linear computational cost in the number of measurements. We reduce the effect of uncertainty in the robot pose (position and orientation) by using landmark-relative submaps. The uncertainty in the measurements and robot pose are accounted for by the use of Bayesian inference techniques during the map update. We demonstrate that a STM map can be used with sensors that generate point measurements, such as light detection and ranging (LiDAR) sensors and stereo cameras. We show that a STM map is a more accurate model than the only comparable online surface mapping technique$\unicode{x2014}$a standard elevation map$\unicode{x2014}$and we also provide qualitative results on practical datasets.
