Using explainability to design physics-aware CNNs for solving subsurface inverse problems

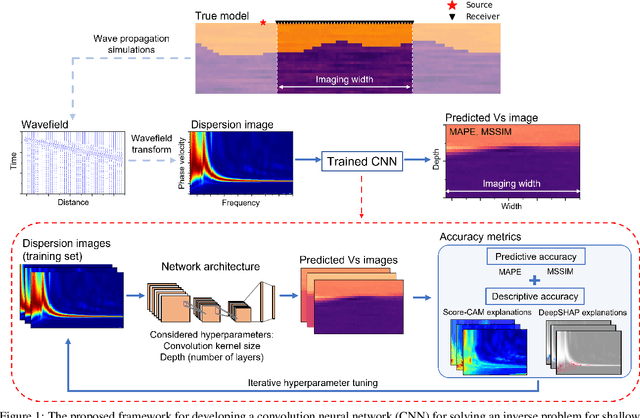

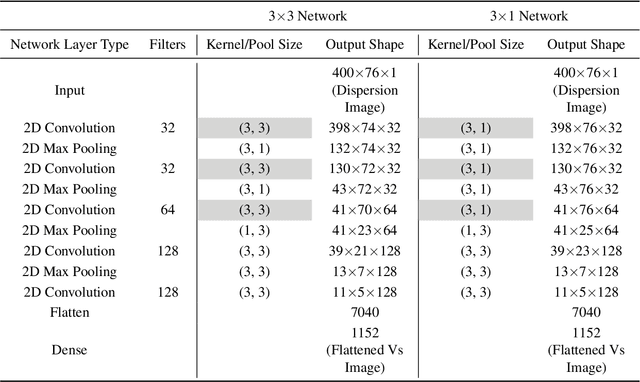

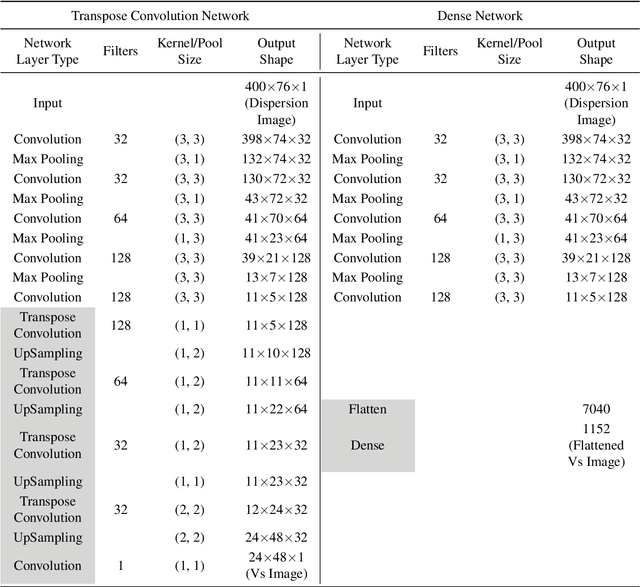

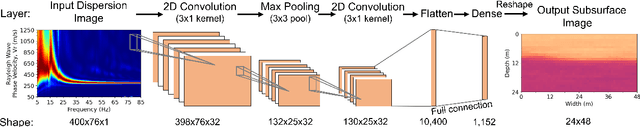

We present a novel method of using explainability techniques to design physics-aware neural networks. We demonstrate our approach by developing a convolutional neural network (CNN) for solving an inverse problem for shallow subsurface imaging. Although CNNs have gained popularity in recent years across many fields, the development of CNNs remains an art, as there are no clear guidelines regarding the selection of hyperparameters that will yield the best network. While optimization algorithms may be used to select hyperparameters automatically, these methods focus on developing networks with high predictive accuracy while disregarding model explainability (descriptive accuracy). However, the field of Explainable Artificial Intelligence (XAI) addresses the absence of model explainability by providing tools that allow developers to evaluate the internal logic of neural networks. In this study, we use the explainability methods Score-CAM and Deep SHAP to select hyperparameters, such as kernel sizes and network depth, to develop a physics-aware CNN for shallow subsurface imaging. We begin with a relatively deep Encoder-Decoder network, which uses surface wave dispersion images as inputs and generates 2D shear wave velocity subsurface images as outputs. Through model explanations, we ultimately find that a shallow CNN using two convolutional layers with an atypical kernel size of 3x1 yields comparable predictive accuracy but with increased descriptive accuracy. We also show that explainability methods can be used to evaluate the network's complexity and decision-making. We believe this method can be used to develop neural networks with high predictive accuracy while also providing inherent explainability.

A Frequency-Velocity CNN for Developing Near-Surface 2D Vs Images from Linear-Array, Active-Source Wavefield Measurements

This paper presents a frequency-velocity convolutional neural network (CNN) for rapid, non-invasive 2D shear wave velocity (Vs) imaging of near-surface geo-materials. Operating in the frequency-velocity domain allows for significant flexibility in the linear-array, active-source experimental testing configurations used for generating the CNN input, which are normalized dispersion images. Unlike wavefield images, normalized dispersion images are relatively insensitive to the experimental testing configuration, accommodating various source types, source offsets, numbers of receivers, and receiver spacings. We demonstrate the effectiveness of the frequency-velocity CNN by applying it to a classic near-surface geophysics problem, namely, imaging a two-layer, undulating, soil-over-bedrock interface. This problem was recently investigated in our group by developing a time-distance CNN, which showed great promise but lacked flexibility in utilizing different field-testing configurations. Herein, the new frequency-velocity CNN is shown to have comparable accuracy to the time-distance CNN while providing greater flexibility to handle varied field applications. The frequency-velocity CNN was trained, validated, and tested using 100,000 synthetic near-surface models. The ability of the proposed frequency-velocity CNN to generalize across various acquisition configurations is first tested using synthetic near-surface models with different acquisition configurations from that of the training set, and then applied to experimental field data collected at the Hornsby Bend site in Austin, Texas, USA. When fully developed for a wider range of geological conditions, the proposed CNN may ultimately be used as a rapid, end-to-end alternative for current pseudo-2D surface wave imaging techniques or to develop starting models for full waveform inversion.
