Graphical Normalizing Flows

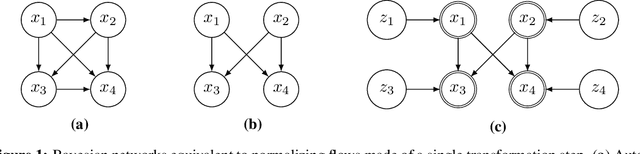

Normalizing flows model complex probability distributions by combining a base distribution with a series of bijective neural networks. State-of-the-art architectures rely on coupling and autoregressive transformations to lift up invertible functions from scalars to vectors. In this work, we revisit these transformations as probabilistic graphical models, showing that a flow reduces to a Bayesian network with a pre-defined topology and a learnable density at each node. From this new perspective, we propose the graphical normalizing flow, a new invertible transformation with either a prescribed or a learnable graphical structure. This model provides a promising way to inject domain knowledge into normalizing flows while preserving both the interpretability of Bayesian networks and the representation capacity of normalizing flows. We demonstrate experimentally that normalizing flows built on top of graphical conditioners are competitive density estimators. Finally, we illustrate how inductive bias can be embedded into normalizing flows by parameterizing graphical conditioners with convolutional networks.
