Dynamics of Parallel Manipulators with Hybrid Complex Limbs -- Modular Modeling and Parallel Computing

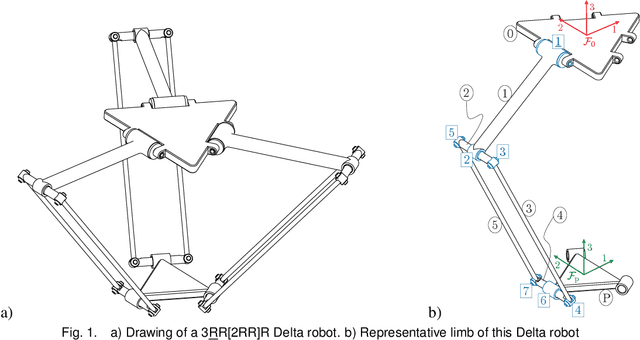

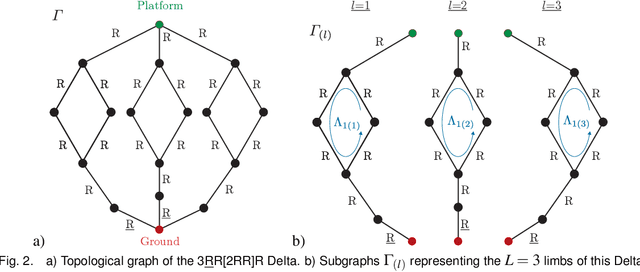

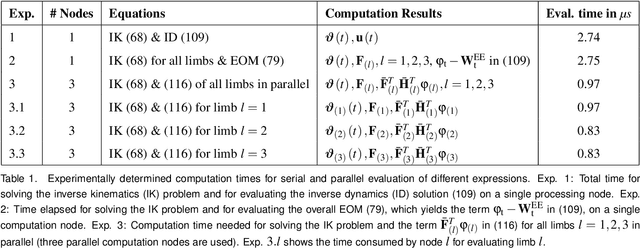

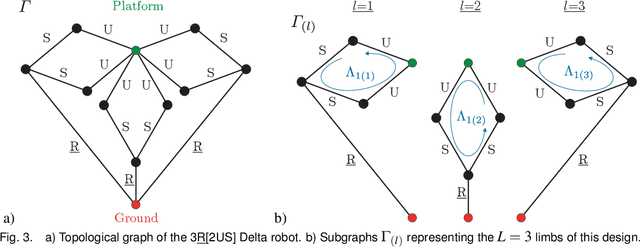

Parallel manipulators, also called parallel kinematics machines (PKM), enable robotic solutions for highly dynamic handling and machining applications. The safe and accurate design and control necessitates high-fidelity dynamics models. Such modeling approaches have already been presented for PKM with simple limbs (i.e. each limb is a serial kinematic chain). A systematic modeling approach for PKM with complex limbs (i.e. limbs that possess kinematic loops) was not yet proposed despite the fact that many successful PKM comprise complex limbs. This paper presents a systematic modular approach to the kinematics and dynamics modeling of PKM with complex limbs that are built as serial arrangement of closed loops. The latter are referred to as hybrid limbs, and can be found in almost all PKM with complex limbs, such as the Delta robot. The proposed method generalizes the formulation for PKM with simple limbs by means of local resolution of loop constraints, which is known as constraint embedding in multibody dynamics. The constituent elements of the method are the kinematic and dynamic equations of motions (EOM), and the inverse kinematics solution of the limbs, i.e. the relation of platform motion and the motion of the limbs. While the approach is conceptually independent of the used kinematics and dynamics formulation, a Lie group formulation is employed for deriving the EOM. The frame invariance of the Lie group formulation is used for devising a modular modeling method where the EOM of a representative limb are used to derived the EOM of the limbs of a particular PKM. The PKM topology is exploited in a parallel computation scheme that shall allow for computationally efficient distributed evaluation of the overall EOM of the PKM. Finally, the method is applied to the IRSBot-2 and a 3\underline{R}R[2RR]R Delta robot, which is presented in detail.
