Depth from a polarisation + RGB stereo pair

Add code
Alert button
Apr 03, 2019

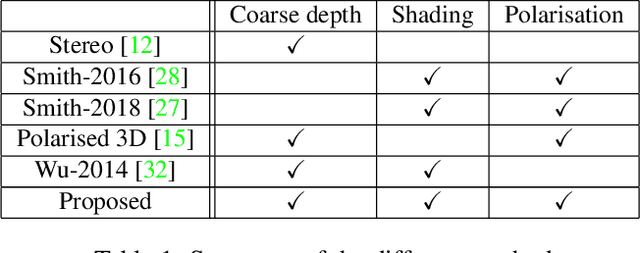

Figure 1 for Depth from a polarisation + RGB stereo pair

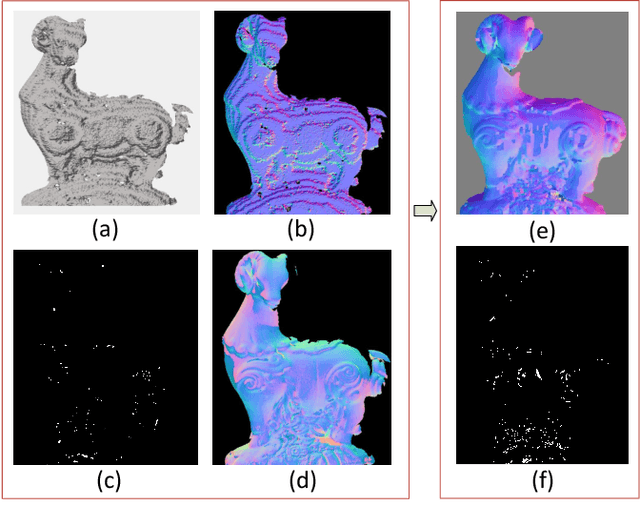

Figure 2 for Depth from a polarisation + RGB stereo pair

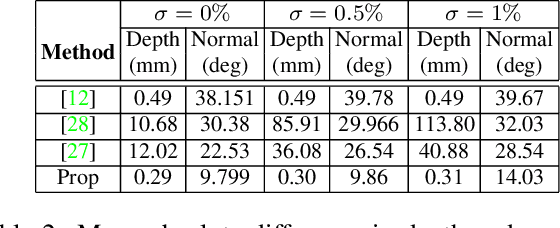

Figure 3 for Depth from a polarisation + RGB stereo pair

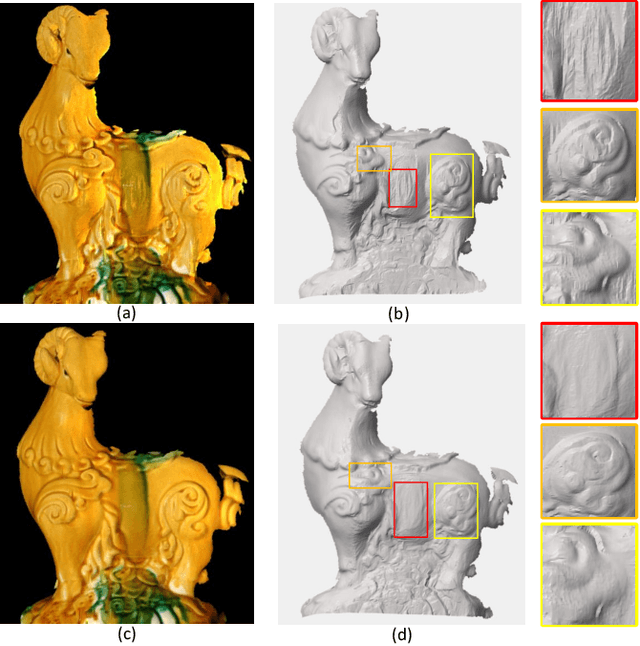

Figure 4 for Depth from a polarisation + RGB stereo pair

Share this with someone who'll enjoy it:

In this paper, we propose a hybrid depth imaging system in which a polarisation camera is augmented by a second image from a standard digital camera. For this modest increase in equipment complexity over conventional shape-from-polarisation, we obtain a number of benefits that enable us to overcome longstanding problems with the polarisation shape cue. The stereo cue provides a depth map which, although coarse, is metrically accurate. This is used as a guide surface for disambiguation of the polarisation surface normal estimates using a higher order graphical model. In turn, these are used to estimate diffuse albedo. By extending a previous shape-from-polarisation method to the perspective case, we show how to compute dense, detailed maps of absolute depth, while retaining a linear formulation. We show that our hybrid method is able to recover dense 3D geometry that is superior to state-of-the-art shape-from-polarisation or two view stereo alone.
