3D Morphology Prediction of Progressive Spinal Deformities from Probabilistic Modeling of Discriminant Manifolds

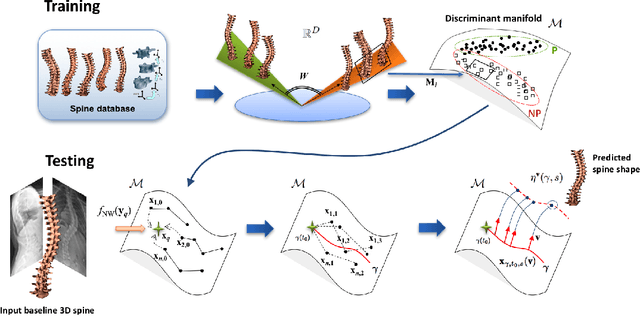

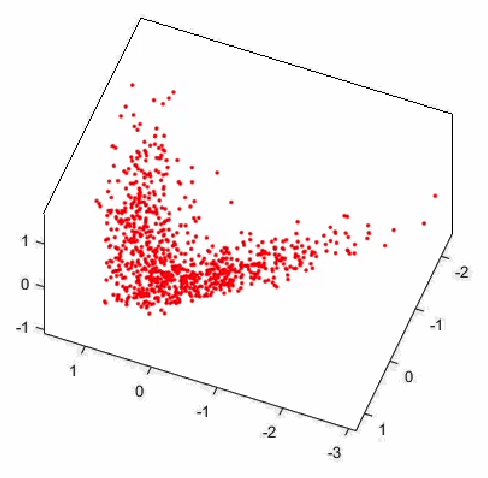

We introduce a novel approach for predicting the progression of adolescent idiopathic scoliosis from 3D spine models reconstructed from biplanar X-ray images. Recent progress in machine learning have allowed to improve classification and prognosis rates, but lack a probabilistic framework to measure uncertainty in the data. We propose a discriminative probabilistic manifold embedding where locally linear mappings transform data points from high-dimensional space to corresponding low-dimensional coordinates. A discriminant adjacency matrix is constructed to maximize the separation between progressive and non-progressive groups of patients diagnosed with scoliosis, while minimizing the distance in latent variables belonging to the same class. To predict the evolution of deformation, a baseline reconstruction is projected onto the manifold, from which a spatiotemporal regression model is built from parallel transport curves inferred from neighboring exemplars. Rate of progression is modulated from the spine flexibility and curve magnitude of the 3D spine deformation. The method was tested on 745 reconstructions from 133 subjects using longitudinal 3D reconstructions of the spine, with results demonstrating the discriminatory framework can identify between progressive and non-progressive of scoliotic patients with a classification rate of 81% and prediction differences of 2.1$^{o}$ in main curve angulation, outperforming other manifold learning methods. Our method achieved a higher prediction accuracy and improved the modeling of spatiotemporal morphological changes in highly deformed spines compared to other learning methods.
