Respiratory Anomaly Detection using Reflected Infrared Light-wave Signals

In this study, we present a non-contact respiratory anomaly detection method using incoherent light-wave signals reflected from the chest of a mechanical robot that can breathe like human beings. In comparison to existing radar and camera-based sensing systems for vitals monitoring, this technology uses only a low-cost ubiquitous light source (e.g., infrared light emitting diode) and sensor (e.g., photodetector). This light-wave sensing (LWS) system recognizes different breathing anomalies from the variations of light intensity reflected from the chest of the robot within a 0.5m-1.5m range. The anomaly detection model demonstrates up to 96.6% average accuracy in classifying 7 different types of breathing data using machine learning. The model can also detect faulty data collected by the system that does not contain breathing information. The developed system can be utilized at home or healthcare facilities as a smart, non-contact and discreet respiration monitoring method.

Prospects and Applications of Incoherent Light in Non-contact Wireless Sensing Systems

The increasing demand for wireless sensing systems has led to the exploration of alternative technologies to overcome the spectrum scarcity of traditional approaches based on radio frequency (RF) waves or microwaves. Incoherent light sources such as light-emitting diodes (LED), paired with light sensors, have the potential to become an attractive option for wireless sensing due to their energy efficiency, longer lifespan, and lower cost. Although coherent light or laser may present safety risks to human eyes and skin, incoherent visible and infrared light has low intensity, and does not harm the human body. Incoherent light has the potential to supersede other wireless sensing technologies, namely RF, laser and camera, by providing many additional benefits including easy implementation, wide bandwidth, reusable frequency, minimum interference, enhanced privacy and simpler data processing. However, the application of incoherent light in the wireless sensing domain is still in its infancy and is an emerging research topic. This study explores the enormous potential and benefits of incoherent visible and infrared light in wireless sensing through various indoor and outdoor applications including speed estimation of vehicles, human vitals monitoring, blood glucose sensing, gesture recognition, occupancy estimation and structural health monitoring.

Hand Gesture Recognition through Reflected Infrared Light Wave Signals

In this study, we present a wireless (non-contact) gesture recognition method using only incoherent light wave signals reflected from a human subject. In comparison to existing radar, light shadow, sound and camera-based sensing systems, this technology uses a low-cost ubiquitous light source (e.g., infrared LED) to send light towards the subject's hand performing gestures and the reflected light is collected by a light sensor (e.g., photodetector). This light wave sensing system recognizes different gestures from the variations of the received light intensity within a 20-35cm range. The hand gesture recognition results demonstrate up to 96% accuracy on average. The developed system can be utilized in numerous Human-computer Interaction (HCI) applications as a low-cost and non-contact gesture recognition technology.

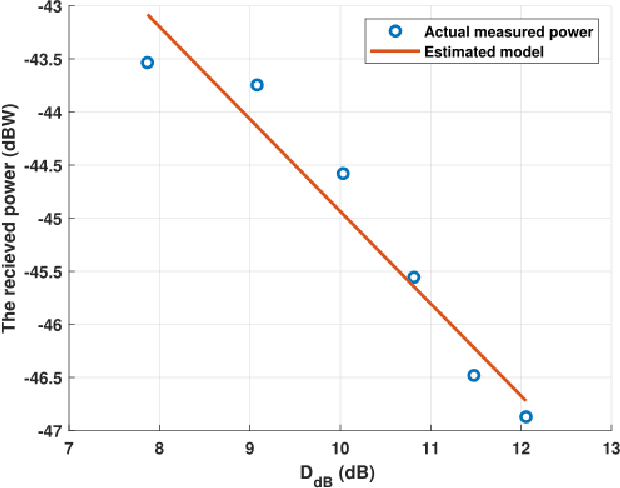

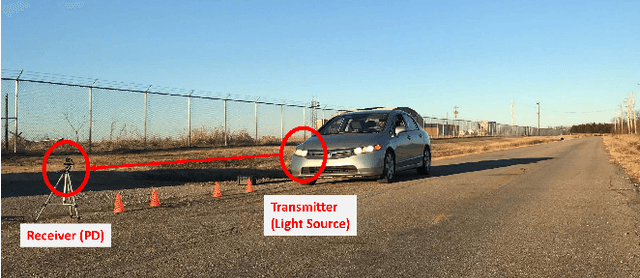

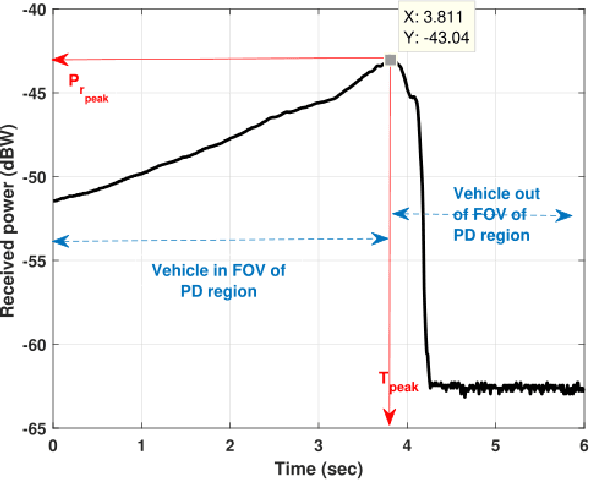

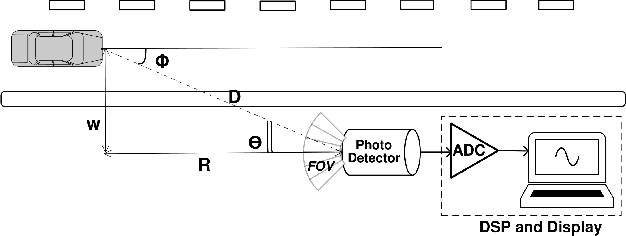

Analysis and Empirical Validation of Visible Light Path Loss Model for Vehicular Sensing and Communication

Advancements in lighting systems and photodetectors provide opportunities to develop viable alternatives to conventional communication and sensing technologies, especially in the vehicular industry. Most of the studies that propose visible light in communication or sensing adopt the Lambertian propagation (path loss) model. This model requires knowledge and utilization of multiple parameters to calculate the path loss such as photodetector area, incidence angle, and distance between transmitter and receiver. In this letter, a simplified path loss model that is mathematically more tractable is proposed for vehicular sensing and communication systems that use visible light technology. Field measurement campaigns are conducted to validate the performance and limits of the developed path loss model. The proposed model is used to fit the data collected at different ranges of incident angles and distances. Further, this model can be used for designing visible light-based communication and sensing systems to minimize the complexity of the Lambertian path loss model, particularly for cases where the incident angle between transmitter and receiver is relatively small.

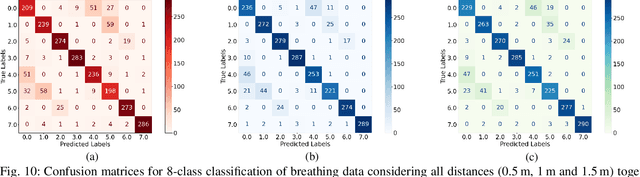

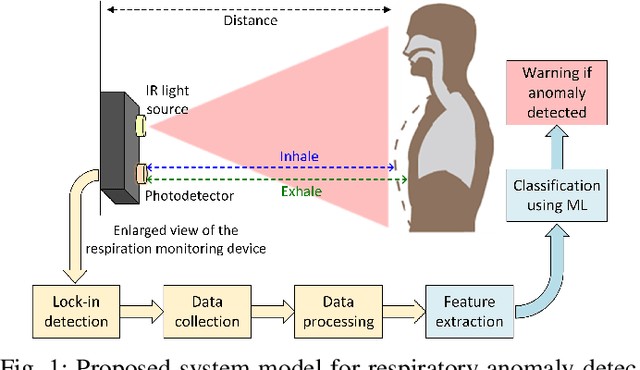

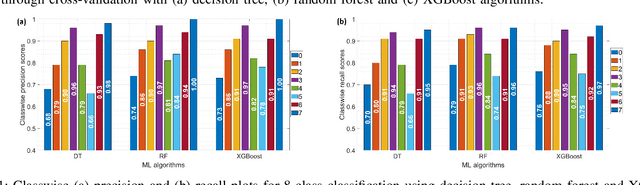

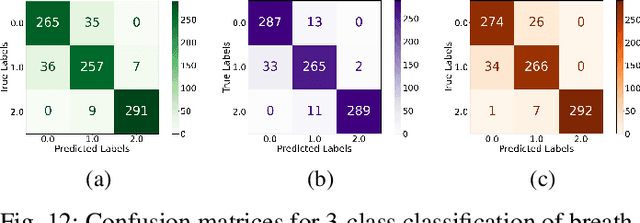

Non-contact Respiratory Anomaly Detection using Infrared Light Wave Sensing

Human respiratory rate and its pattern convey important information about the physical and psychological states of the subject. Abnormal breathing can be a sign of fatal health issues which may lead to further diagnosis and treatment. Wireless light wave sensing (LWS) using incoherent infrared light turns out to be promising in human breathing monitoring in a safe, discreet, efficient and non-invasive way without raising any privacy concerns. The regular breathing patterns of each individual are unique, hence the respiration monitoring system needs to learn the subject's usual pattern in order to raise flags for breathing anomalies. Additionally, the system needs to be capable of validating that the collected data is a breathing waveform, since any faulty data generated due to external interruption or system malfunction should be discarded. In order to serve both of these needs, breathing data of normal and abnormal breathing were collected using infrared light wave sensing technology in this study. Two machine learning algorithms, decision tree and random forest, were applied to detect breathing anomalies and faulty data. Finally, model performance was evaluated using average classification accuracies found through cross-validation. The highest classification accuracy of 96.6% was achieved with the data collected at 0.5m distance using decision tree model. Ensemble models like random forest were found to perform better than a single model in classifying the data that were collected at multiple distances from the light wave sensing setup.
